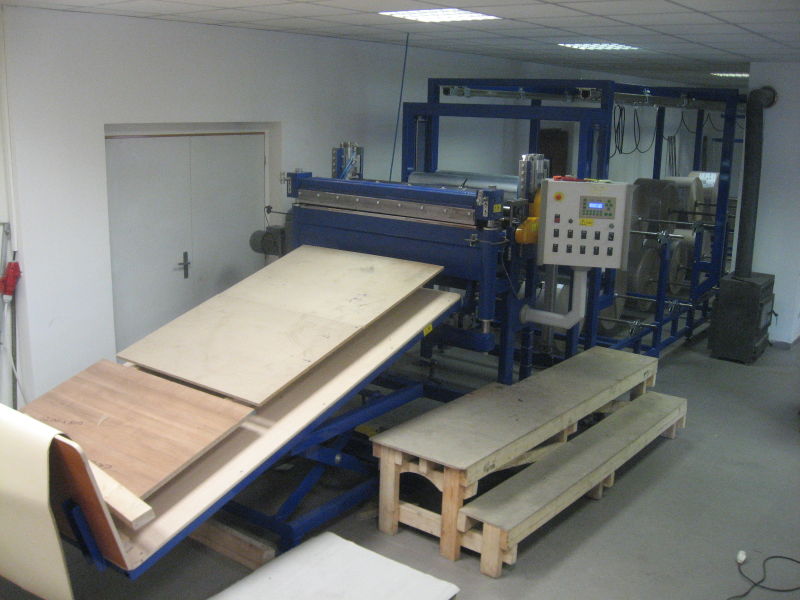

Transverse shears line PDL 1300

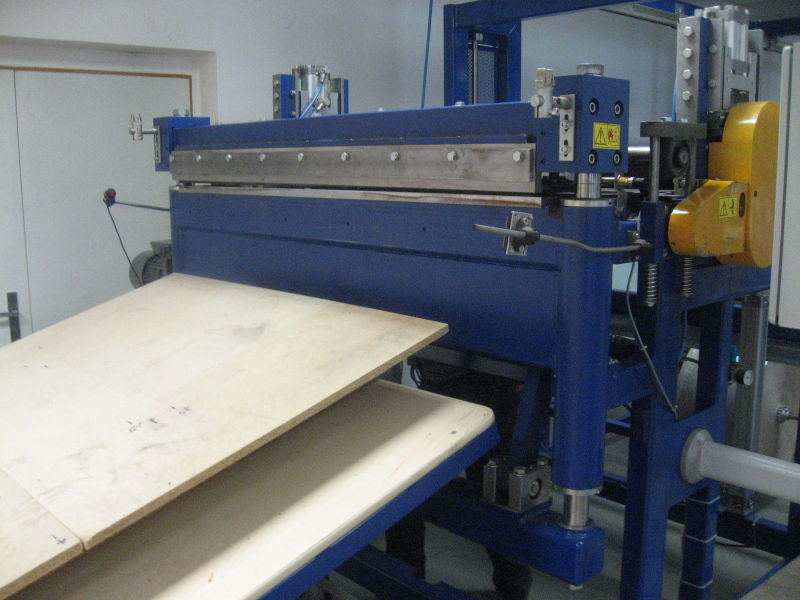

Automatic multi-layer paper cutter with cross shears

Effective paper cutting in multiple layers with accurate cut and output tray.

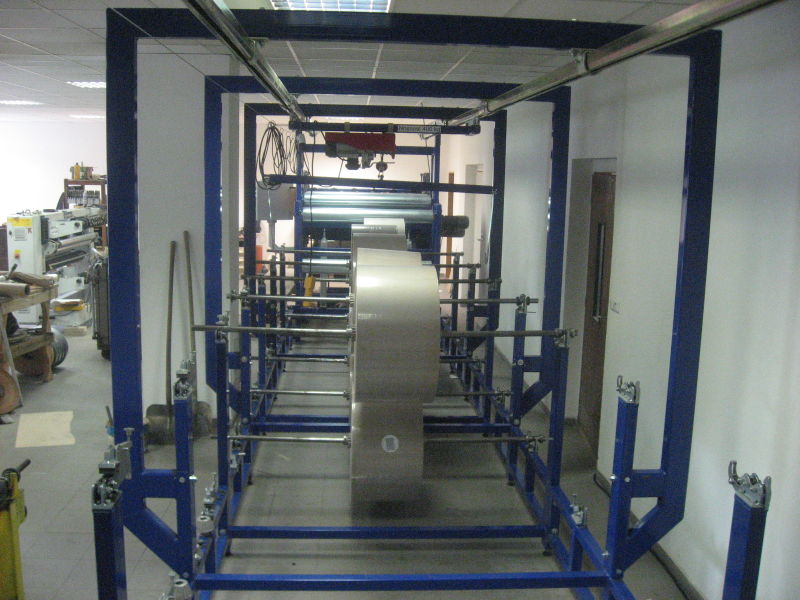

The line processes paper wrapped in rolls and cuts it on sheets of optional lengths.
Cut sheets are placed on the positioning table.
The line works automatically after loading the paper.

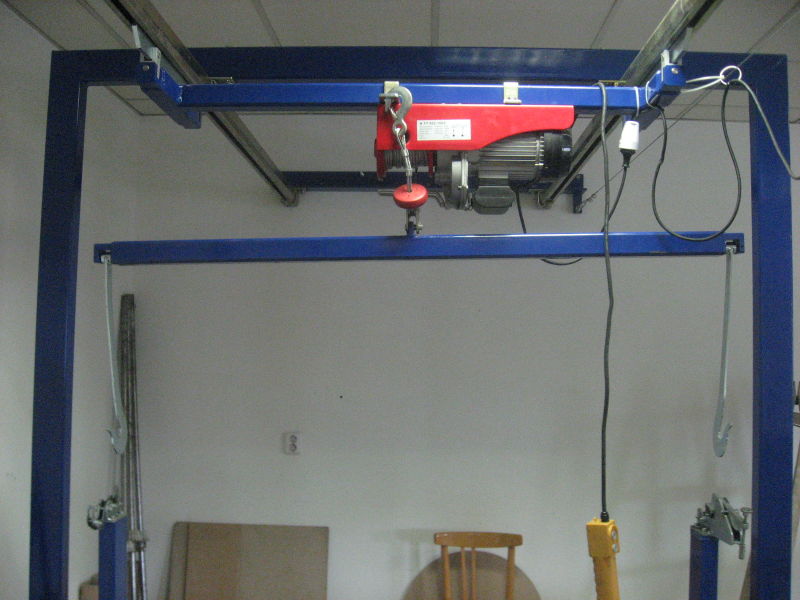

To facilitate the handling of input rolls the line is equipped with a crane.
Information about the correctness of the operation is evaluated by the control system.

input rolls: 16
cutting width: 1300 mm
input roll diameter: up to 800 mm
sheet leght: up to 3 m
material: paper
